ME5 MOISTURE METER

CONCRETE MOISTURE METER

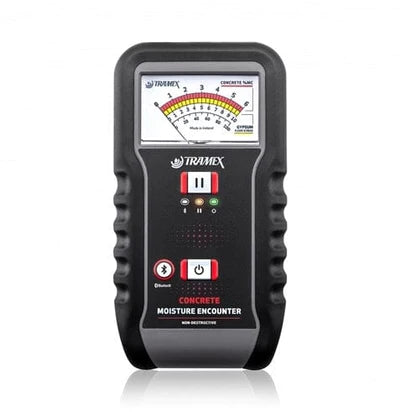

The Tramex CME5 is a concrete moisture meter that detects and evaluates moisture conditions within the concrete slab or screed by measuring the electrical impedance. This moisture meter determines the strength of the current and converts this to a moisture content value for concrete slabs and a comparative value for other cementitious floor screeds, displayed on a large clear analog dial.

Features & Benefits:

• Non-destructive in operation with no need to probe, drill or mechanically damage the surface.
• Clear easy-to-read analog dial.
• Instant and precise readings to a depth of approximately 3/4-in into the slab.
• Bluetooth connection to accompanying IOS & Android App allowing for continual development and integration of apps and reporting.
• Hold function freezes meter reading when inspecting areas where the meter face is not visible, and for easy recording of data.
• Reproducible and reliable results.

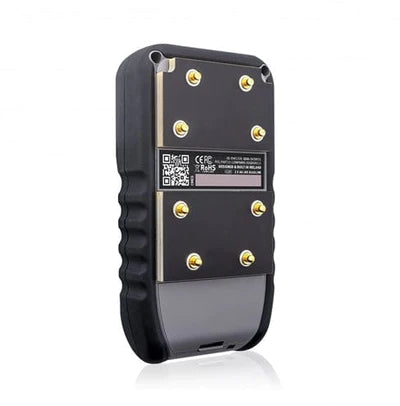

• Spring-loaded contact pins compensate for uneven concrete and boost signal penetration.
• Rugged ergonomically designed enclosure.

The Tramex CME5 is a non-destructive meter for measuring moisture content instantly in concrete slabs per ASTM F2659 and giving comparative or equivalent readings in other cementitious floor screeds. This easy-to-use meter gives precise and repeatable results, the Concrete Moisture Encounter allows the user to make multiple tests over a large area in the shortest possible time. A low-frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture present in the material.

Construction: ABS Body
Power: 2 x AALR6 ALKALINE (included)
Display: Analogue
Depth of penetration: approx. ¾" (20 mm)
Measuring range:
Moisture Content for Concrete 0 to 6%
Comparative for Gypsum floor screed 0 to 10
Reference scale 0 to 100
